Available in 100W, 150W and 200W, the SUNLUX SL-UFO03DP Series is a dual-CCT UFO DOB LED high bay light for industrial and commercial high-bay projects. It features Epistar 2835 LEDs, luminous efficacy of ≥110 lm/W, PF >0.9, CRI (Ra) >70, aluminum and PC construction, IP65 protection, and an AC 100–240 V, 50/60 Hz input. The specified CCT range is 3000–6500 K.

产品

Description

SUNLUX SL-UFO03DP Dual-CCT UFO DOB LED High Bay Light

The SUNLUX SL-UFO03DP Series is a UFO-style DOB LED high bay range offered in three rated-power options: 100W, 150W and 200W. It is intended for industrial and commercial high-ceiling lighting projects where a round high bay luminaire is required.

All three models use Epistar 2835 LEDs and have a specified luminous efficacy of at least 110 lm/W. The electrical specification includes an AC 100–240 V, 50/60 Hz input and a power factor above 0.9. The series is specified with CRI (Ra) above 70, aluminum and PC construction, and an IP65 rating.

The published correlated color temperature range is 3000–6500 K and the product is described as dual-CCT. The exact two CCT settings and the selection method should be confirmed for each order. Model-specific LED quantities, luminaire dimensions, listed unit weights and carton dimensions are provided below for product selection, quotation and shipping planning.

Key Features

  • Three model options: SL-UFO03DP100 (100W), SL-UFO03DP150 (150W) and SL-UFO03DP200 (200W)
  • Dual-CCT UFO DOB high bay product series
  • Specified CCT range: 3000–6500 K

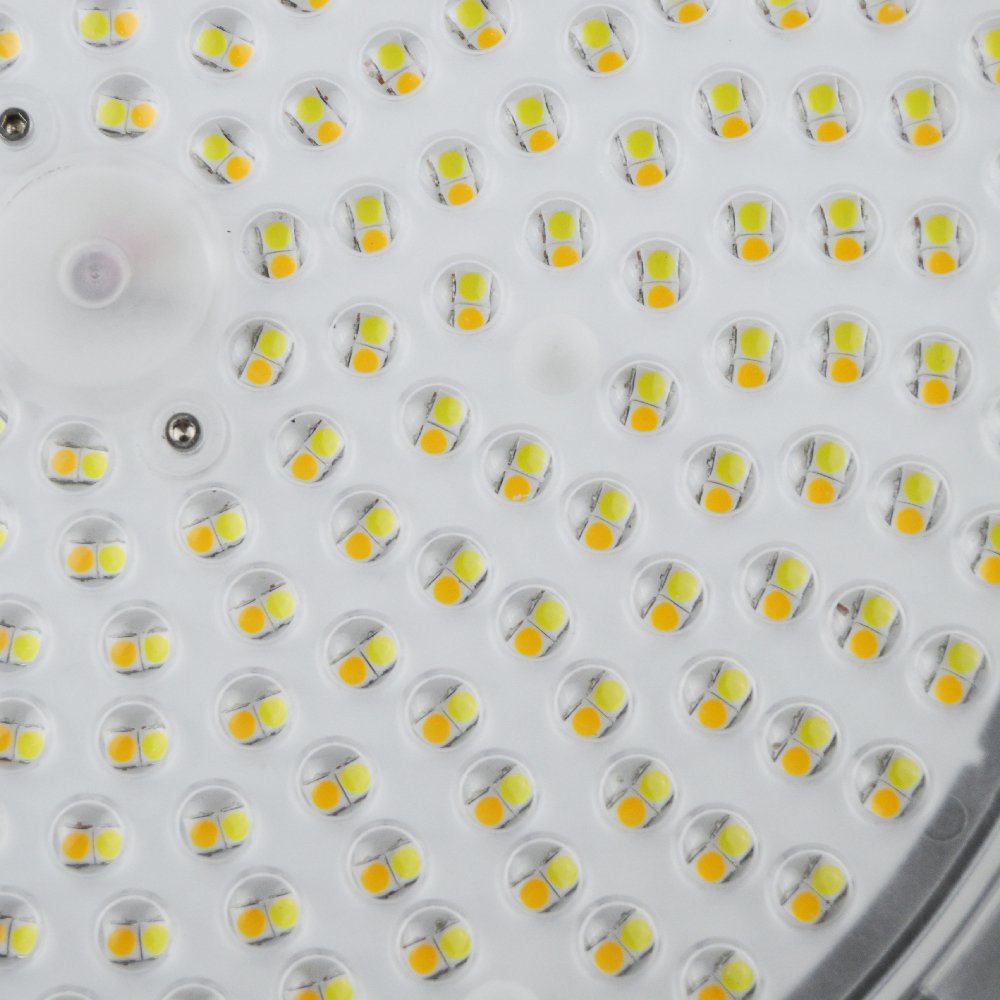

  • Epistar 2835 LED source
  • Luminous efficacy: ≥110 lm/W
  • Input: AC 100–240 V, 50/60 Hz
  • Power factor: >0.9
  • Color rendering index: CRI (Ra) >70
  • Aluminum and PC construction
  • IP65-rated enclosure

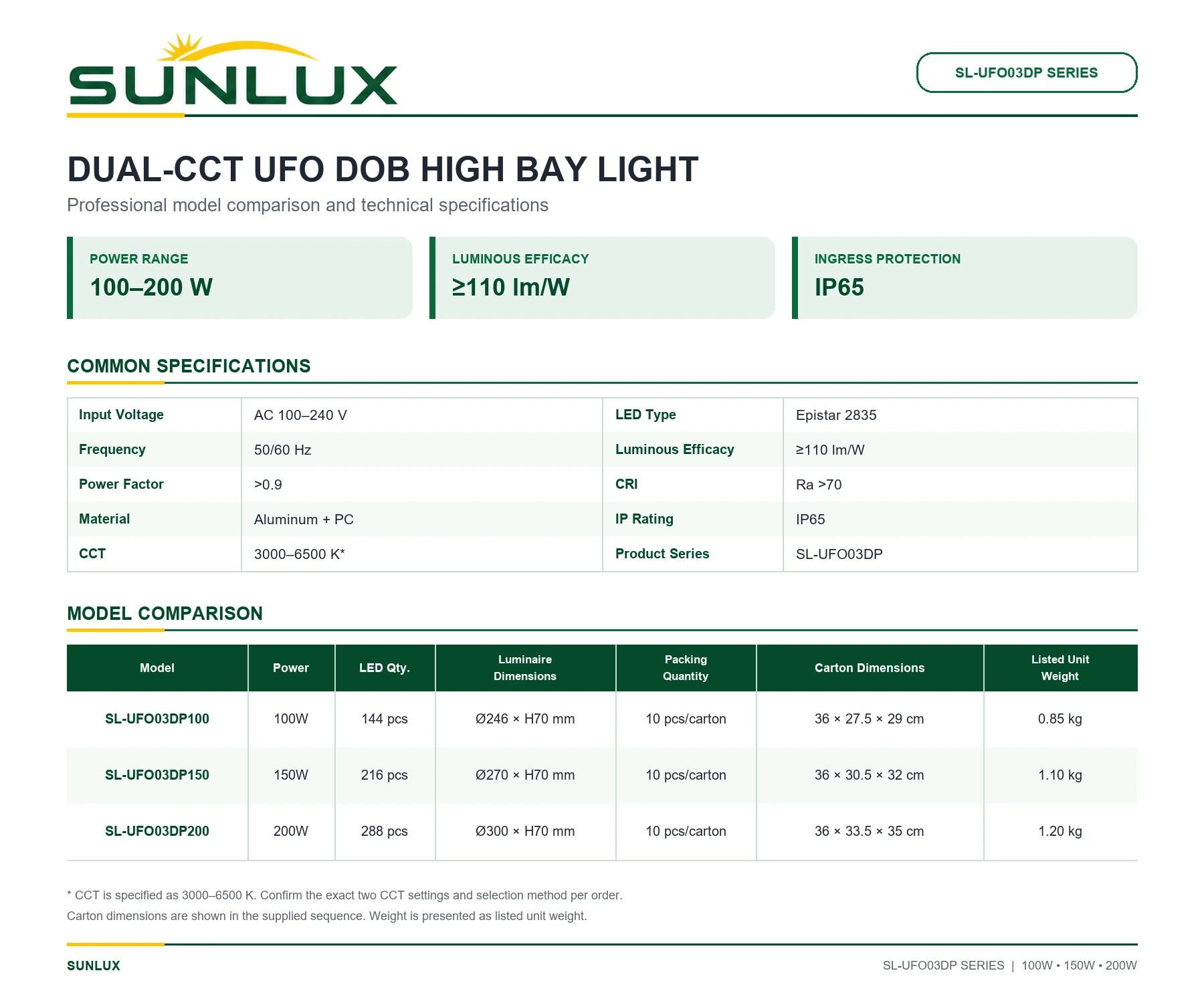

Specifications

Common specifications
Parameter Specification
Brand SUNLUX
Series SL-UFO03DP
Product Type Dual-CCT UFO DOB LED High Bay Light
Input Voltage AC 100–240 V
Input Frequency 50/60 Hz
Power Factor >0.9
LED Type Epistar 2835
Luminous Efficacy ≥110 lm/W
Color Rendering Index CRI (Ra) >70
CCT 3000–6500 K
Material Aluminum + PC
IP Rating IP65

Model Specifications

Model comparison
Model Rated Power LED Quantity Luminaire Dimensions Packing Quantity Carton Dimensions Listed Unit Weight
SL-UFO03DP100 100W 144 pcs Ø246 × H70 mm 10 pcs/carton 36 × 27.5 × 29 cm 0.85 kg
SL-UFO03DP150 150W 216 pcs Ø270 × H70 mm 10 pcs/carton 36 × 30.5 × 32 cm 1.10 kg
SL-UFO03DP200 200W 288 pcs Ø300 × H70 mm 10 pcs/carton 36 × 33.5 × 35 cm 1.20 kg

CCT is specified as 3000–6500 K and the product is described as dual-CCT. Confirm the exact two CCT settings and selection method per order. Carton dimensions are shown in the supplied sequence. Weight is presented as listed unit weight.

Applications

Typical project applications include:

  • Warehouses and storage areas
  • Manufacturing workshops
  • Factory production areas
  • Industrial halls
  • Logistics and distribution facilities
  • High-ceiling wholesale or retail premises
  • Other commercial or industrial spaces designed for high bay luminaires

Final product selection should be based on the required illuminance, mounting height, photometric layout, installation conditions and applicable local standards.

Packaging Information

Packaging information
Model Packing Quantity Carton Dimensions Listed Unit Weight
SL-UFO03DP100 10 pcs/carton 36 × 27.5 × 29 cm 0.85 kg
SL-UFO03DP150 10 pcs/carton 36 × 30.5 × 32 cm 1.10 kg
SL-UFO03DP200 10 pcs/carton 36 × 33.5 × 35 cm 1.20 kg

Carton gross weight, carton net weight, individual box dimensions, pallet quantities and container-loading data should be confirmed before quotation or shipment.

Frequently Asked Questions

What models are available in the SL-UFO03DP Series?

The series includes SL-UFO03DP100 at 100W, SL-UFO03DP150 at 150W and SL-UFO03DP200 at 200W.

What input voltage does this high bay light support?

All three models are specified for AC 100–240 V at 50/60 Hz.

Which LEDs are used?

The series uses Epistar 2835 LEDs. The 100W model has 144 LEDs, the 150W model has 216 LEDs and the 200W model has 288 LEDs.

What is the luminous efficacy?

The specified luminous efficacy is ≥110 lm/W for the series.

What color-temperature options are available?

The published CCT specification is 3000–6500 K and the product is described as dual-CCT. Confirm the exact two CCT settings and their selection method when ordering.

What is the color rendering index?

The specified color rendering index is CRI (Ra) >70.

What materials are used?

The fixture is specified with aluminum and PC construction.

What is the ingress-protection rating?

The listed enclosure rating is IP65. Suitability for a specific location should be checked against the installation conditions and applicable local requirements.

How many lights are packed in one carton?

Each model is packed 10 pieces per carton. Carton dimensions vary by model.

Is dimming available?

Dimming capability is not stated in the supplied specification. Confirm this requirement before placing an order.

Product Video
