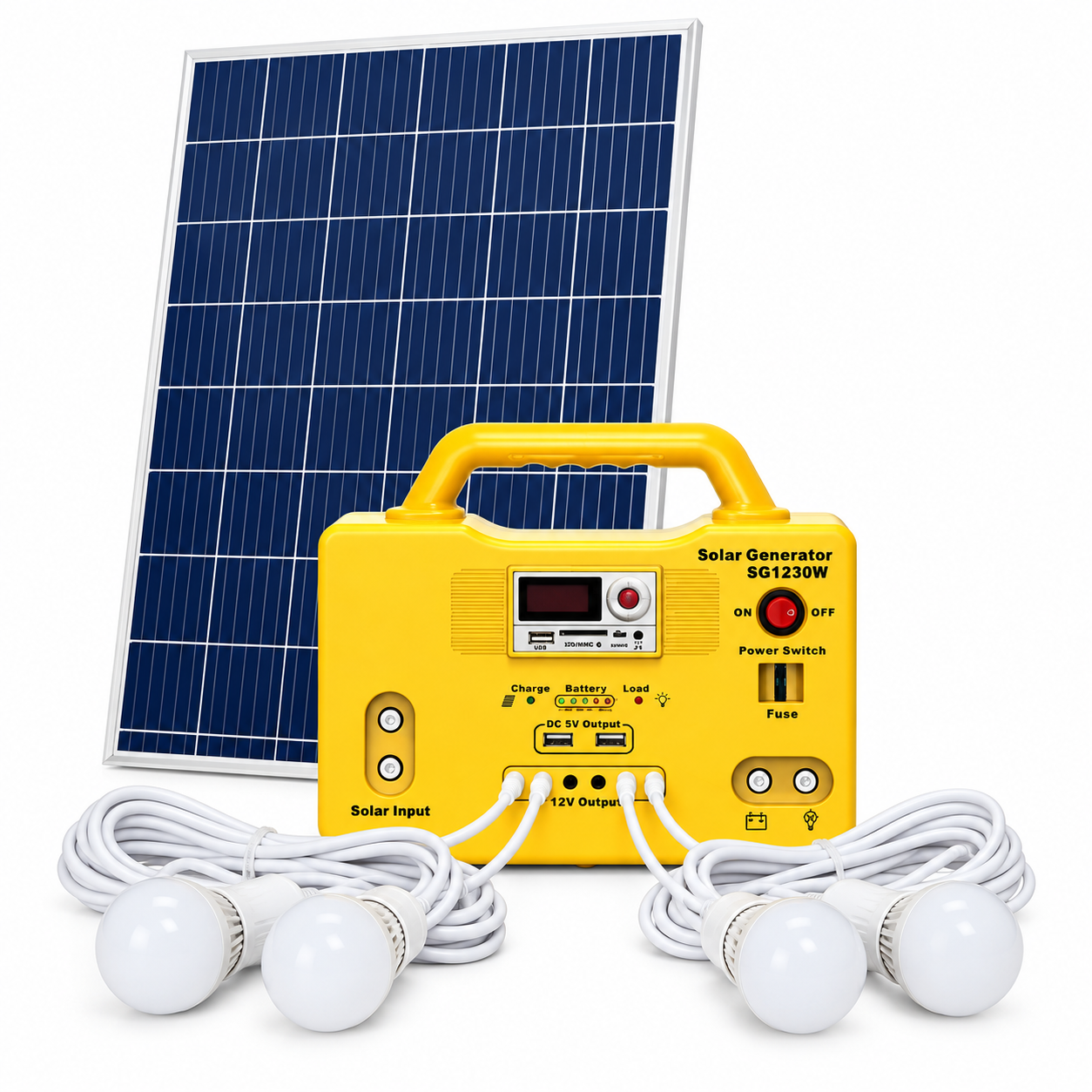

Solar home lighting system with solar panel and 4 LED bulbs

The SUNLUX SLSST01 is a compact 20W solar home lighting system designed for off-grid homes, small shops, study areas and basic backup lighting. It combines a 20W solar panel, a built-in 12V 12Ah lead-acid battery, four LED lamps, USB charging, six 12V DC outputs and FM/MP3 functions in one portable unit.

产品

Description

Portable Off-Grid Energy Solution

SLSST01 20W Solar Home Lighting System

The SUNLUX SLSST01 is a compact solar lighting and low-voltage power
system designed for off-grid homes, small businesses, study areas,
community service locations and emergency backup lighting.


System Features

Independent Solar Power

Generates and stores solar energy for locations with limited or no access to grid electricity.

Four LED Lamps

Includes two 3W lamps and two 5W lamps for flexible indoor and outdoor lighting.

USB and DC Outputs

Two USB charging ports and six 12V DC outputs support compatible low-voltage devices.

Portable and Easy to Use

Integrated carrying handle and clearly arranged connections make installation and daily use simple.


Technical Specifications

Model SLSST01
Product Type Portable Solar Home Lighting System
Solar Panel 18V 20W
Solar Panel Cable Approximately 8 metres
Battery Built-in 12V 12Ah lead-acid battery
Charge Controller 12V 5A PWM
LED Lamps 2 × 3W and 2 × 5W
Lamp Cable Approximately 4 metres per lamp, with switch
DC Outputs 6 × 12V DC
USB Outputs 2 × USB, 5V/1A
Multimedia FM radio and MP3 playback
Solar Charging Time Approximately 7–10 hours in suitable sunlight
Reference Lighting Time Up to approximately 9 hours with all four supplied lamps under stated test conditions

Actual charging and operating time varies with solar intensity,
panel position, battery condition, charging duration, ambient
temperature and connected load.

Application Scenarios

Practical Solar Lighting Across Africa

A practical lighting and mobile-charging solution for homes,
community services, small businesses and evening study.


Family Home Lighting

Reliable evening lighting and mobile charging for everyday household activities.


Rural Clinic Lighting

Basic lighting and low-voltage power for rural community service locations.


Small Business Lighting

Practical lighting for tailor shops, kiosks and workshops after sunset.


Evening Study

Convenient LED lighting for reading, homework and evening learning.

Typical Package Contents

  • 1 × SUNLUX SLSST01 solar power unit
  • 1 × 18V 20W solar panel with approximately 8 m cable
  • 2 × 12V 3W LED lamps with cable and switch
  • 2 × 12V 5W LED lamps with cable and switch
  • Connection and accessory cable set
  • 1 × User manual

Accessories, plug types, lamp quantities, packaging and branding
can be confirmed according to the final order.

OEM and Wholesale Supply

Product configuration, accessories, cable specifications, packaging
and branding can be customized for distributor and project requirements.
Contact SUNLUX to confirm the final specification before placing a bulk order.

Portable Off-Grid Energy Solution

SLSST01 20W Solar Home Lighting System

The SUNLUX SLSST01 is a compact solar lighting and low-voltage power
system designed for off-grid homes, small businesses, study areas,
community service locations and emergency backup lighting.


System Features

Independent Solar Power

Generates and stores solar energy for locations with limited or no access to grid electricity.

Four LED Lamps

Includes two 3W lamps and two 5W lamps for flexible indoor and outdoor lighting.

USB and DC Outputs

Two USB charging ports and six 12V DC outputs support compatible low-voltage devices.

Portable and Easy to Use

Integrated carrying handle and clearly arranged connections make installation and daily use simple.


Technical Specifications

Model SLSST01
Product Type Portable Solar Home Lighting System
Solar Panel 18V 20W
Solar Panel Cable Approximately 8 metres
Battery Built-in 12V 12Ah lead-acid battery
Charge Controller 12V 5A PWM
LED Lamps 2 × 3W and 2 × 5W
Lamp Cable Approximately 4 metres per lamp, with switch
DC Outputs 6 × 12V DC
USB Outputs 2 × USB, 5V/1A
Multimedia FM radio and MP3 playback
Solar Charging Time Approximately 7–10 hours in suitable sunlight
Reference Lighting Time Up to approximately 9 hours with all four supplied lamps under stated test conditions

Actual charging and operating time varies with solar intensity,
panel position, battery condition, charging duration, ambient
temperature and connected load.

Application Scenarios

Practical Solar Lighting Across Africa

A practical lighting and mobile-charging solution for homes,
community services, small businesses and evening study.


Family Home Lighting

Reliable evening lighting and mobile charging for everyday household activities.


Rural Clinic Lighting

Basic lighting and low-voltage power for rural community service locations.


Small Business Lighting

Practical lighting for tailor shops, kiosks and workshops after sunset.


Evening Study

Convenient LED lighting for reading, homework and evening learning.

Typical Package Contents

  • 1 × SUNLUX SLSST01 solar power unit
  • 1 × 18V 20W solar panel with approximately 8 m cable
  • 2 × 12V 3W LED lamps with cable and switch
  • 2 × 12V 5W LED lamps with cable and switch
  • Connection and accessory cable set
  • 1 × User manual

Accessories, plug types, lamp quantities, packaging and branding
can be confirmed according to the final order.

OEM and Wholesale Supply

Product configuration, accessories, cable specifications, packaging
and branding can be customized for distributor and project requirements.
Contact SUNLUX to confirm the final specification before placing a bulk order.
